Name: MAX20090AUP/V+W
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX20090AUP/V+W
Availability: InStock

REF: MAX20090AUP/V+W Analog Devices Inc./Maxim Integrated

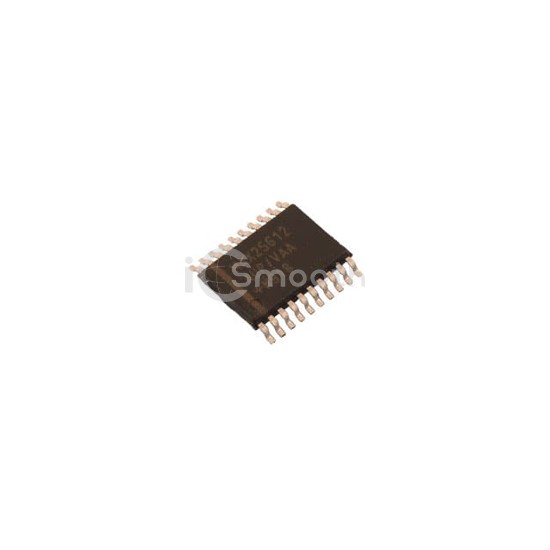

MAX20090AUP/V+W

Analog Devices Inc./Maxim Integrated

IC LED DRIVER CTRLR PWM 20TSSOP

MAX20090AUP/V+W is a PMIC - LED Drivers manufactured by Analog Devices Inc./Maxim Integrated. IC LED DRIVER CTRLR PWM 20TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - output 4.875V ~ 5.125V, package / case 20-TSSOP (0.173", 4.40mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 6,427

Specifications

16 parameters

Product Status	Obsolete
Type	DC DC Controller
Topology	SEPIC, Step-Down (Buck), Step-Up (Boost)
Internal Switch(s)	No
Number of Outputs	1
Voltage - Supply (Min)	5V
Voltage - Supply (Max)	65V
Voltage - Output	4.875V ~ 5.125V

Current - Output / Channel	-
Frequency	200kHz ~ 2.2MHz
Dimming	Analog, PWM
Applications	Automotive, Commercial & Industrial Lighting
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	20-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package	20-TSSOP-EP
