Name: MAX1962EEP+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX1962EEP+
Price: 6.82 USD
Availability: InStock

REF: MAX1962EEP+ Analog Devices Inc./Maxim Integrated

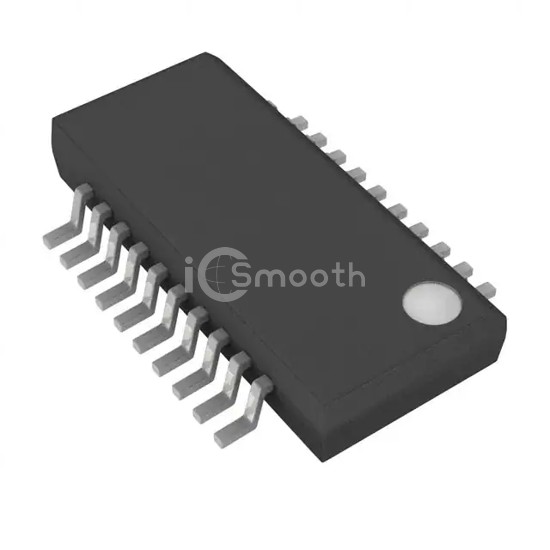

MAX1962EEP+

Analog Devices Inc./Maxim Integrated

IC REG CTRLR BUCK 20QSOP

MAX1962EEP+ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc./Maxim Integrated. IC REG CTRLR BUCK 20QSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.35V ~ 5.5V, package / case 20-SSOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 2,173

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	2.35V ~ 5.5V
Frequency - Switching	500kHz, 1MHz

Duty Cycle (Max)	92%
Synchronous Rectifier	Yes
Clock Sync	Yes
Serial Interfaces	-
Control Features	Current Limit, Enable, Frequency Control
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	20-SSOP (0.154", 3.90mm Width)
Supplier Device Package	20-QSOP
