Name: MAX1858EEG+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX1858EEG+
Price: 10.25 USD
Availability: InStock

REF: MAX1858EEG+ Analog Devices Inc./Maxim Integrated

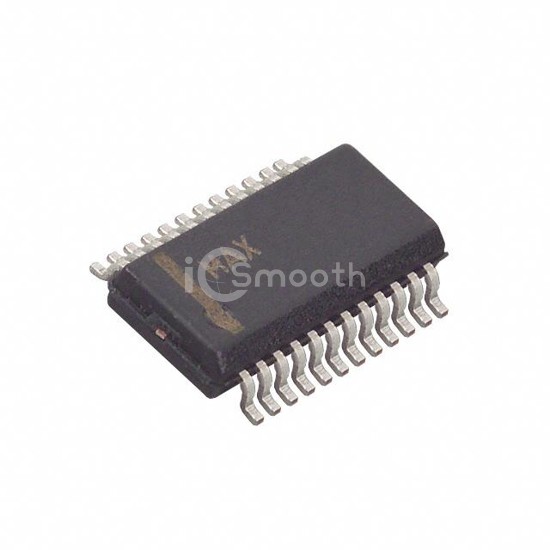

MAX1858EEG+

Analog Devices Inc./Maxim Integrated

IC REG CTRLR BUCK 24QSOP

MAX1858EEG+ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc./Maxim Integrated. IC REG CTRLR BUCK 24QSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.75V ~ 23V, package / case 24-SSOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 5,145

Tiered Pricing USD

1+ $10.2500 —

10+ $8.0000 -22%

50+ $7.1002 -31%

100+ $6.8217 -33%

250+ $6.5276 -36%

500+ $6.3503 -38%

1,000+ $6.2044 -39% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	2
Output Phases	2
Voltage - Supply (Vcc/Vdd)	4.75V ~ 23V
Frequency - Switching	100kHz ~ 600kHz

Duty Cycle (Max)	-
Synchronous Rectifier	Yes
Clock Sync	Yes
Serial Interfaces	-
Control Features	Current Limit, Enable, Frequency Control, Reset
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	24-SSOP (0.154", 3.90mm Width)
Supplier Device Package	24-QSOP
