Name: MAX1853EXT
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX1853EXT
Price: 3.04 USD
Availability: InStock

REF: MAX1853EXT Analog Devices Inc./Maxim Integrated

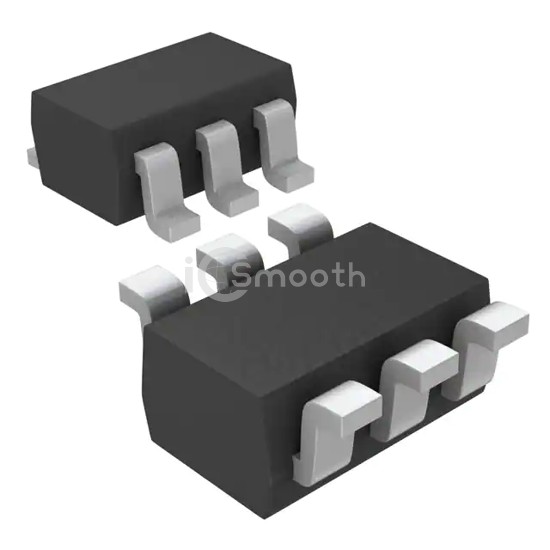

MAX1853EXT

Analog Devices Inc./Maxim Integrated

IC REG CHARGE PUMP INV SC70-6

MAX1853EXT is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc./Maxim Integrated. IC REG CHARGE PUMP INV SC70-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-TSSOP, SC-88, SOT-363, current - output 30mA.

Datasheet Request a Quote

In Stock: 252

Specifications

17 parameters

Product Status	Obsolete
Function	Ratiometric
Output Configuration	Positive or Negative
Topology	Charge Pump
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	2.5V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	-Vin, 2Vin

Voltage - Output (Max)	-
Current - Output	30mA
Frequency - Switching	200kHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	6-TSSOP, SC-88, SOT-363
Supplier Device Package	SC-70-6
