Name: MAX181CCPL
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX181CCPL
Availability: InStock

REF: MAX181CCPL Analog Devices Inc./Maxim Integrated

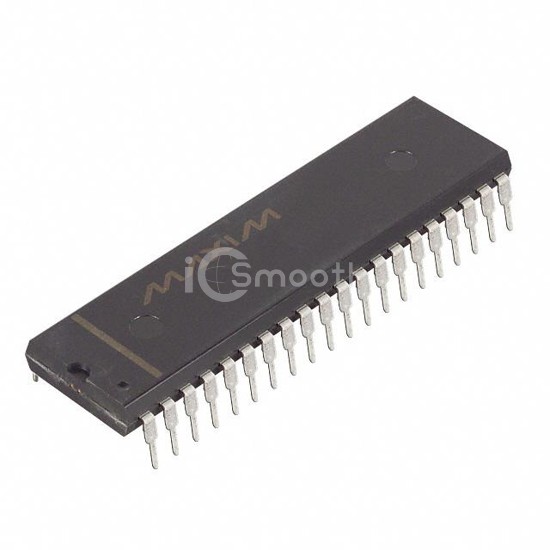

MAX181CCPL

IC ADC 12BIT SAR 40DIP

MAX181CCPL is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc./Maxim Integrated. IC ADC 12BIT SAR 40DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply, digital 5V, -11.4V ~ 15.75V, package / case 40-DIP (0.600", 15.24mm).

Datasheet Request a Quote

In Stock: 4,601

Specifications

18 parameters

Product Status	Obsolete
Number of Bits	12
Sampling Rate (Per Second)	100k
Number of Inputs	6
Input Type	Differential, Single Ended
Data Interface	Parallel
Configuration	MUX-S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	SAR
Reference Type	External, Internal
Voltage - Supply, Analog	5V, -11.4V ~ 15.75V
Voltage - Supply, Digital	5V, -11.4V ~ 15.75V
Features	-
Operating Temperature	0°C ~ 70°C
Package / Case	40-DIP (0.600", 15.24mm)
Supplier Device Package	40-PDIP
Mounting Type	Through Hole
