Name: MAX1735EUK25+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX1735EUK25+
Availability: InStock

REF: MAX1735EUK25+ Analog Devices Inc./Maxim Integrated

MAX1735EUK25+

Analog Devices Inc./Maxim Integrated

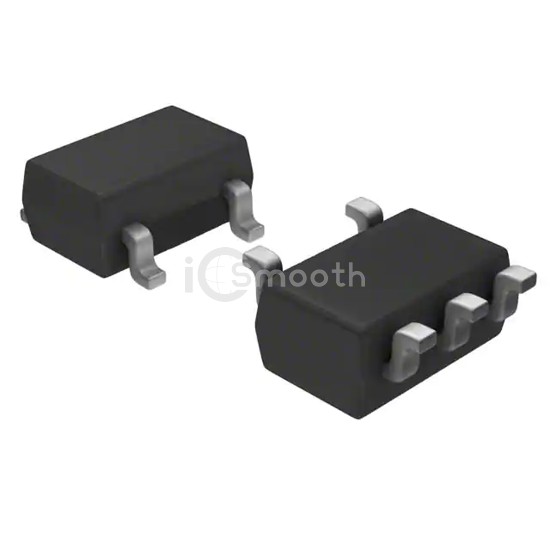

IC REG LIN NEG ADJ 200MA SOT23-5

MAX1735EUK25+ is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc./Maxim Integrated. IC REG LIN NEG ADJ 200MA SOT23-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SC-74A, SOT-753, current - supply (max) 125 µA.

Datasheet Request a Quote

In Stock: 9,007

Specifications

18 parameters

Product Status	Active
Output Configuration	Negative
Output Type	Adjustable (Fixed)
Number of Regulators	1
Voltage - Input (Max)	-6.5V
Voltage - Output (Min/Fixed)	-1.25V (-2.5V)
Voltage - Output (Max)	-5.5V
Voltage Dropout (Max)	0.24V @ 200mA
Current - Output	200mA

Current - Quiescent (Iq)	85 µA
Current - Supply (Max)	125 µA
PSRR	60dB (100Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Supplier Device Package	SOT-23-5
