Name: MAX1714AEEP+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX1714AEEP+
Price: 9.98 USD
Availability: InStock

REF: MAX1714AEEP+ Analog Devices Inc./Maxim Integrated

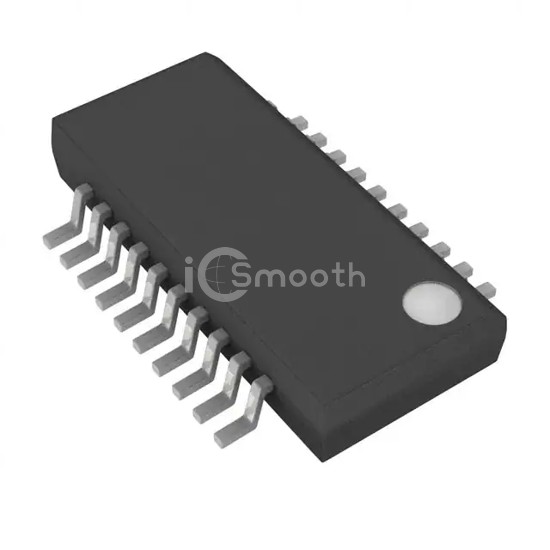

MAX1714AEEP+

Analog Devices Inc./Maxim Integrated

IC REG CTRLR BUCK 20QSOP

MAX1714AEEP+ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc./Maxim Integrated. IC REG CTRLR BUCK 20QSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 5.5V, package / case 20-SSOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 5,569

Tiered Pricing USD

1+ $9.9800 —

10+ $7.7840 -22%

50+ $6.9054 -31%

100+ $6.6334 -34%

250+ $6.3460 -36%

500+ $6.1728 -38%

1,000+ $6.0303 -40% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	4.5V ~ 5.5V
Frequency - Switching	200kHz, 300kHz, 450kHz, 600kHz

Duty Cycle (Max)	100%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Enable, On Time Control, Power Good
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	20-SSOP (0.154", 3.90mm Width)
Supplier Device Package	20-QSOP
