Name: MAX16821BATI+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX16821BATI+
Price: 8.04 USD
Availability: InStock

REF: MAX16821BATI+ Analog Devices Inc./Maxim Integrated

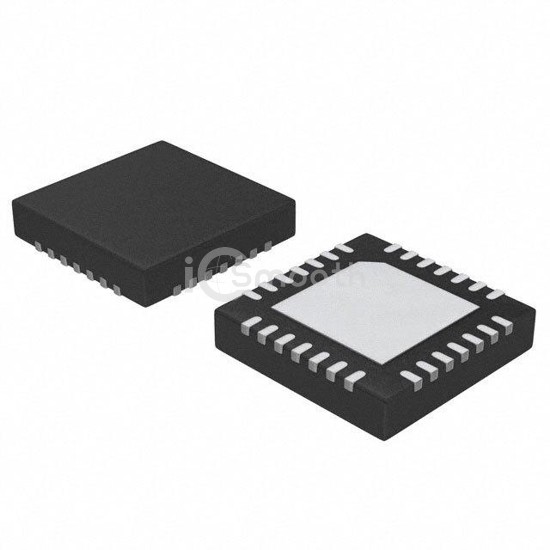

MAX16821BATI+

Analog Devices Inc./Maxim Integrated

IC LED DRIVER CTRLR PWM 28TQFN

MAX16821BATI+ is a PMIC - LED Drivers manufactured by Analog Devices Inc./Maxim Integrated. IC LED DRIVER CTRLR PWM 28TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 28-WFQFN Exposed Pad, number of outputs 1.

Datasheet Request a Quote

In Stock: 2,317

Tiered Pricing USD

1+ $8.0400 —

10+ $6.2640 -22%

60+ $5.4885 -32%

120+ $5.2788 -34%

300+ $5.1875 -35% BEST

Specifications

16 parameters

Product Status	Active
Type	DC DC Controller
Topology	SEPIC, Step-Down (Buck), Step-Up (Boost)
Internal Switch(s)	No
Number of Outputs	1
Voltage - Supply (Min)	4.75V
Voltage - Supply (Max)	28V
Voltage - Output	-

Current - Output / Channel	-
Frequency	125kHz ~ 1.5MHz
Dimming	PWM
Applications	Backlight
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	28-WFQFN Exposed Pad
Supplier Device Package	28-TQFN (5x5)
