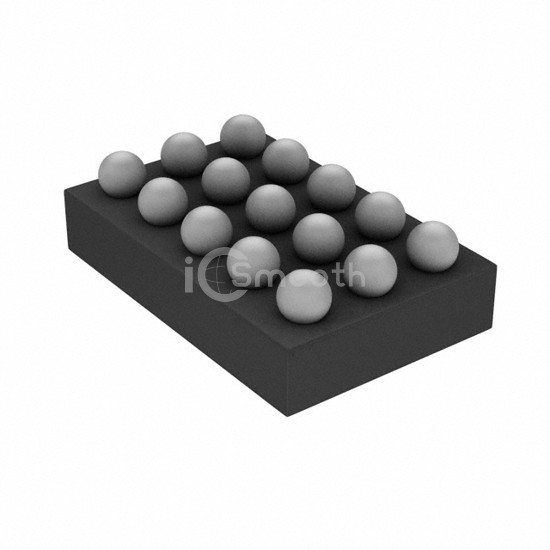

Name: MAX15103EWL+T
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX15103EWL+T
Price: 6.07 USD
Availability: InStock

REF: MAX15103EWL+T Analog Devices Inc./Maxim Integrated

MAX15103EWL+T

Analog Devices Inc./Maxim Integrated

IC REG LINEAR POS ADJ 3A 15WLP

MAX15103EWL+T is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc./Maxim Integrated. IC REG LINEAR POS ADJ 3A 15WLP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 15-WFBGA, WLBGA, current - output 3A.

Datasheet Request a Quote

In Stock: 4,096

Tiered Pricing USD

1+ $6.0700 —

10+ $4.6570 -23%

25+ $4.3036 -29%

100+ $3.9149 -36%

250+ $3.7296 -39%

500+ $3.6179 -40%

1,000+ $3.5260 -42% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	0.6V
Voltage - Output (Max)	5.2V
Voltage Dropout (Max)	0.2V @ 3A
Current - Output	3A

Current - Quiescent (Iq)	3.5 mA
Current - Supply (Max)	-
PSRR	40dB (100kHz)
Control Features	Enable, Power Good, Soft Start
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	15-WFBGA, WLBGA
Supplier Device Package	15-WLP (1.58x2.66)
