Name: MAX15046BAEE+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX15046BAEE+
Price: 5.12 USD
Availability: InStock

REF: MAX15046BAEE+ Analog Devices Inc./Maxim Integrated

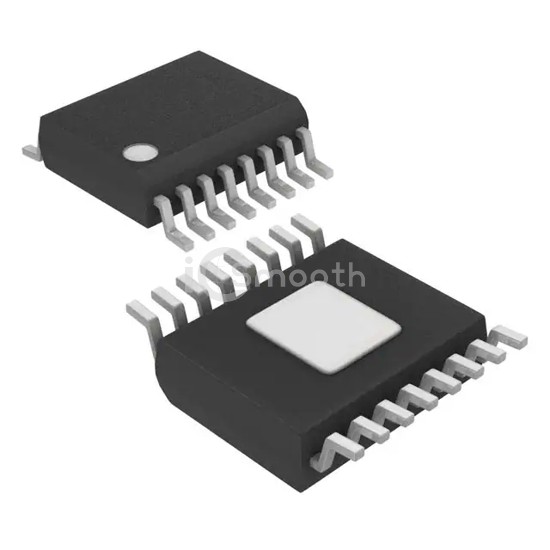

MAX15046BAEE+

Analog Devices Inc./Maxim Integrated

IC REG CTRLR BUCK 16QSOP

MAX15046BAEE+ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc./Maxim Integrated. IC REG CTRLR BUCK 16QSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 40V, package / case 16-LSSOP (0.154", 3.90mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 8,878

Tiered Pricing USD

1+ $5.1200 —

10+ $3.9010 -24%

25+ $3.5972 -30%

100+ $3.2631 -36%

300+ $3.0769 -40%

500+ $3.0080 -41%

1,000+ $2.9290 -43%

2,500+ $2.8456 -44% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	4.5V ~ 40V
Frequency - Switching	100kHz ~ 1MHz

Duty Cycle (Max)	87.5%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Enable, Frequency Control, Power Good
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	16-LSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package	16-QSOP-EP
