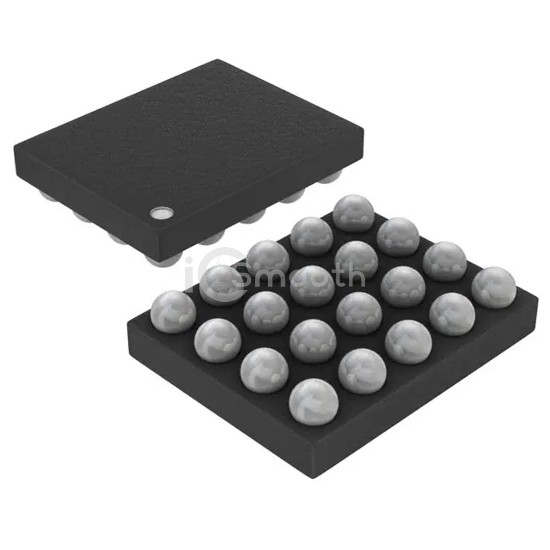

MAX14724EWP+T

In Stock: 5,955
MAX14724EWP+T - Analog Devices Inc./Maxim Integrated - Interface - Analog Switches, Multiplexers, Demultiplexers
REF: MAX14724EWP+T Analog Devices Inc./Maxim Integrated
MAX14724EWP+T

Analog Devices Inc./Maxim Integrated

IC MUX 8:4 3OHM 20WLP

MAX14724EWP+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC MUX 8:4 3OHM 20WLP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 20-WFBGA, WLBGA, number of circuits 1.

Datasheet Request a Quote

In Stock: 5,955

Specifications

18 parameters
Product StatusActive
Switch Circuit-
Multiplexer/Demultiplexer Circuit8:4
Number of Circuits1
On-State Resistance (Max)3Ohm
Channel-to-Channel Matching (ΔRon)500mOhm
Voltage - Supply, Single (V+)1.6V ~ 5.5V
Voltage - Supply, Dual (V±)±5V
Switch Time (Ton, Toff) (Max)2µs, 600ns (Typ)
-3db Bandwidth50MHz
Charge Injection-15pC
Channel Capacitance (CS(off), CD(off))50pF, 85pF
Current - Leakage (IS(off)) (Max)250nA
Crosstalk-65dB @ 1MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case20-WFBGA, WLBGA
Supplier Device Package20-WLP (1.63x2.03)
