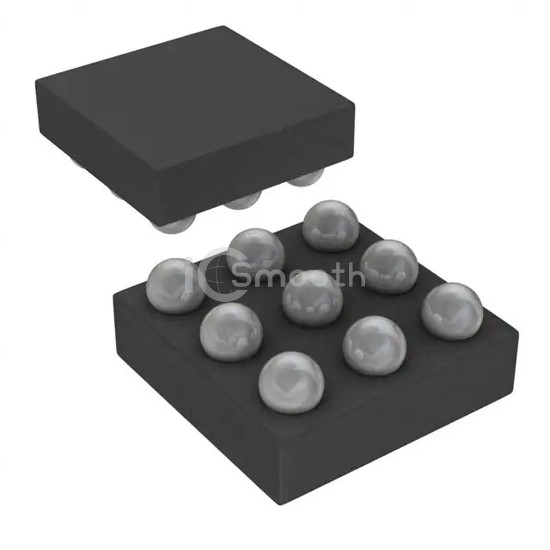

Name: MAX14689EWL+T
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX14689EWL+T
Price: 3.24 USD
Availability: InStock

REF: MAX14689EWL+T Analog Devices Inc./Maxim Integrated

MAX14689EWL+T

Analog Devices Inc./Maxim Integrated

IC SWITCH ANALOG DPDT 9-WLP

MAX14689EWL+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH ANALOG DPDT 9-WLP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 9-WFBGA, WLBGA, number of circuits 1.

Datasheet Request a Quote

In Stock: 1,148

Tiered Pricing USD

1+ $3.2400 —

10+ $2.4280 -25%

25+ $2.2256 -31%

100+ $2.0036 -38%

250+ $1.8977 -41%

500+ $1.8339 -43%

1,000+ $1.7813 -45% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	DPDT
Multiplexer/Demultiplexer Circuit	2:2
Number of Circuits	1
On-State Resistance (Max)	450mOhm
Channel-to-Channel Matching (ΔRon)	5mOhm
Voltage - Supply, Single (V+)	1.6V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	200µs, 30µs

-3db Bandwidth	110MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	25pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-100dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	9-WFBGA, WLBGA
Supplier Device Package	9-WLP (1.26x1.26)
