Name: MAX14689AETB+T
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX14689AETB+T
Price: 3.35 USD
Availability: InStock

REF: MAX14689AETB+T Analog Devices Inc./Maxim Integrated

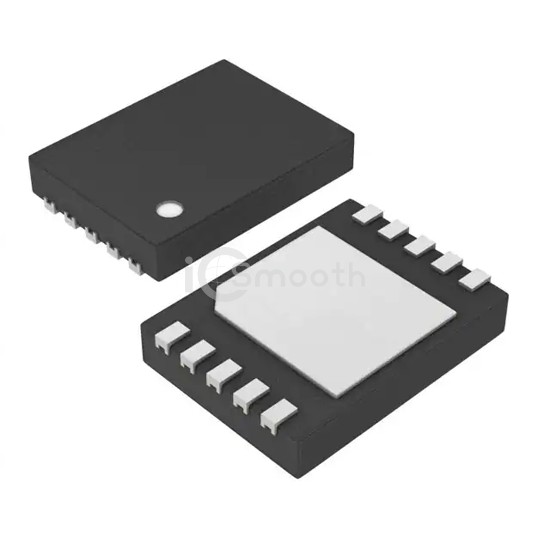

MAX14689AETB+T

Analog Devices Inc./Maxim Integrated

IC SWITCH DPDT SINGLE 10TDFN

MAX14689AETB+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH DPDT SINGLE 10TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-WFDFN Exposed Pad, number of circuits 1.

Datasheet Request a Quote

In Stock: 3,446

Tiered Pricing USD

1+ $3.3500 —

10+ $2.5170 -25%

25+ $2.3084 -31%

100+ $2.0793 -38%

250+ $2.0043 -40% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	DPDT
Multiplexer/Demultiplexer Circuit	2:2
Number of Circuits	1
On-State Resistance (Max)	450mOhm
Channel-to-Channel Matching (ΔRon)	5mOhm
Voltage - Supply, Single (V+)	1.6V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	200µs, 30µs

-3db Bandwidth	110MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	25pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-100dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-WFDFN Exposed Pad
Supplier Device Package	10-TDFN (2.5x2)
