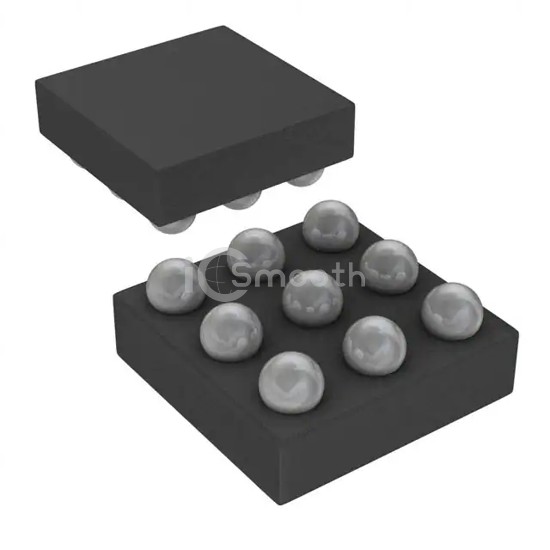

Name: MAX14594EEWL+T
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX14594EEWL+T
Price: 5.25 USD
Availability: InStock

REF: MAX14594EEWL+T Analog Devices Inc./Maxim Integrated

MAX14594EEWL+T

Analog Devices Inc./Maxim Integrated

IC SWITCH DPDT 5 MOHM 9WLP

MAX14594EEWL+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH DPDT 5 MOHM 9WLP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 9-WFBGA, WLBGA, number of circuits 1.

Datasheet Request a Quote

In Stock: 2,736

Tiered Pricing USD

1+ $5.2500 —

10+ $4.0040 -24%

25+ $3.6936 -30%

100+ $3.3523 -36%

250+ $3.1894 -39%

500+ $3.0913 -41%

1,000+ $3.0105 -43% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	DPDT
Multiplexer/Demultiplexer Circuit	2:2
Number of Circuits	1
On-State Resistance (Max)	380mOhm
Channel-to-Channel Matching (ΔRon)	5mOhm
Voltage - Supply, Single (V+)	1.6V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	10ms, 2.25ms

-3db Bandwidth	200MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	25pF
Current - Leakage (IS(off)) (Max)	400nA
Crosstalk	-80dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	9-WFBGA, WLBGA
Supplier Device Package	9-WLP (1.26x1.26)
