Name: MAX1436ECQ+TD
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX1436ECQ+TD
Availability: InStock

REF: MAX1436ECQ+TD Analog Devices Inc./Maxim Integrated

MAX1436ECQ+TD

Analog Devices Inc./Maxim Integrated

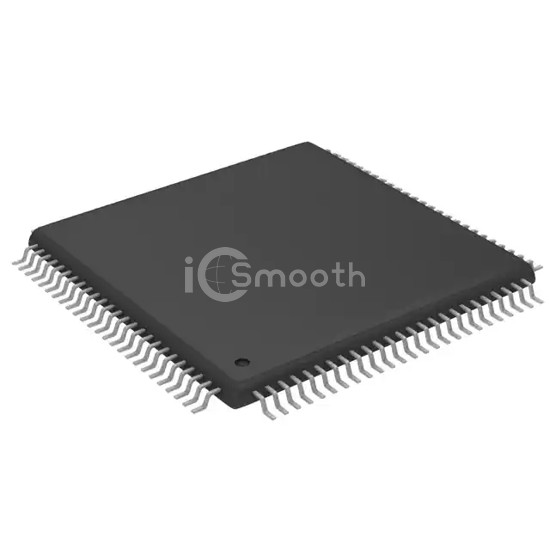

IC ADC 10BIT PIPELINED 100TQFP

MAX1436ECQ+TD is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc./Maxim Integrated. IC ADC 10BIT PIPELINED 100TQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.7V ~ 1.9V, package / case 100-TQFP Exposed Pad.

Datasheet Request a Quote

In Stock: 4,959

Specifications

18 parameters

Product Status	Obsolete
Number of Bits	10
Sampling Rate (Per Second)	40M
Number of Inputs	8
Input Type	Differential
Data Interface	LVDS - Serial
Configuration	S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	8

Architecture	Pipelined
Reference Type	External, Internal
Voltage - Supply, Analog	1.7V ~ 1.9V
Voltage - Supply, Digital	1.7V ~ 1.9V
Features	Simultaneous Sampling
Operating Temperature	-40°C ~ 85°C
Package / Case	100-TQFP Exposed Pad
Supplier Device Package	100-TQFP-EP (14x14)
Mounting Type	Surface Mount
