Name: MAX1338ETN+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX1338ETN+
Availability: InStock

REF: MAX1338ETN+ Analog Devices Inc./Maxim Integrated

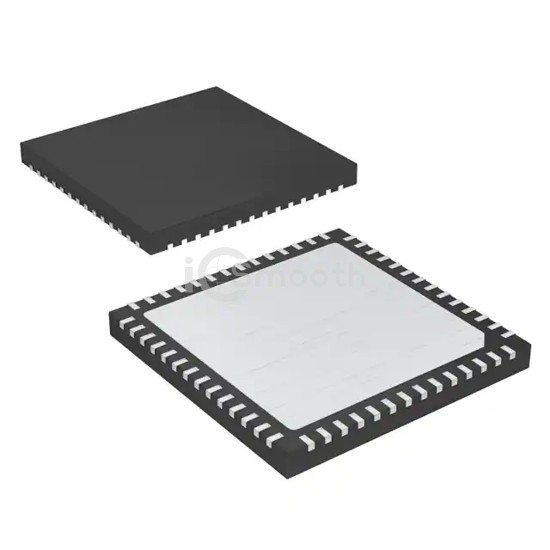

MAX1338ETN+

IC ADC 14BIT SAR 56TQFN

MAX1338ETN+ is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc./Maxim Integrated. IC ADC 14BIT SAR 56TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 4.75V ~ 5.25V, package / case 56-WFQFN Exposed Pad.

Request a Quote

In Stock: 6,474

Specifications

18 parameters

Product Status	Active
Number of Bits	14
Sampling Rate (Per Second)	150k
Number of Inputs	4
Input Type	Differential
Data Interface	Serial
Configuration	-
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	SAR
Reference Type	External
Voltage - Supply, Analog	4.75V ~ 5.25V
Voltage - Supply, Digital	4.75V ~ 5.25V
Features	Simultaneous Sampling
Operating Temperature	-40°C ~ 85°C
Package / Case	56-WFQFN Exposed Pad
Supplier Device Package	56-TQFN (8x8)
Mounting Type	Surface Mount
