Name: MAX1302AEUG+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX1302AEUG+
Price: 29.04 USD
Availability: InStock

REF: MAX1302AEUG+ Analog Devices Inc./Maxim Integrated

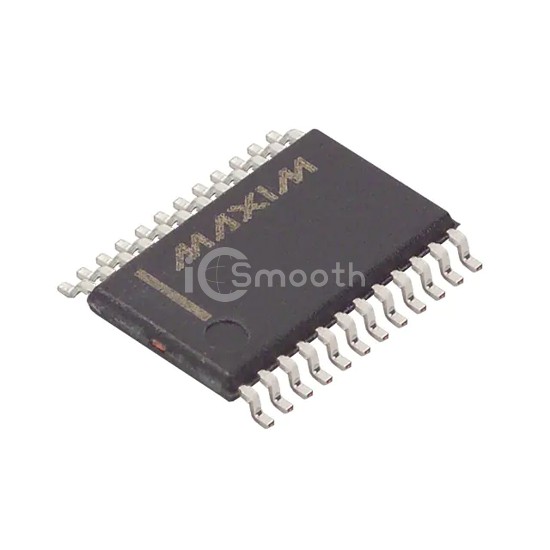

MAX1302AEUG+

Analog Devices Inc./Maxim Integrated

IC ADC 16BIT SAR 24TSSOP

MAX1302AEUG+ is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc./Maxim Integrated. IC ADC 16BIT SAR 24TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, package / case 24-TSSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 1,134

Tiered Pricing USD

1+ $29.0400 —

10+ $23.4500 -19%

62+ $20.9827 -28%

124+ $20.3306 -30%

310+ $19.6421 -32% BEST

Specifications

18 parameters

Product Status	Active
Number of Bits	16
Sampling Rate (Per Second)	115k
Number of Inputs	4, 8
Input Type	Differential, Single Ended
Data Interface	SPI
Configuration	MUX-PGA-S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	SAR
Reference Type	External, Internal
Voltage - Supply, Analog	5V
Voltage - Supply, Digital	5V
Features	PGA
Operating Temperature	-40°C ~ 85°C
Package / Case	24-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	24-TSSOP
Mounting Type	Surface Mount
