Name: MAX1296AEEG
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX1296AEEG
Availability: InStock

REF: MAX1296AEEG Analog Devices Inc./Maxim Integrated

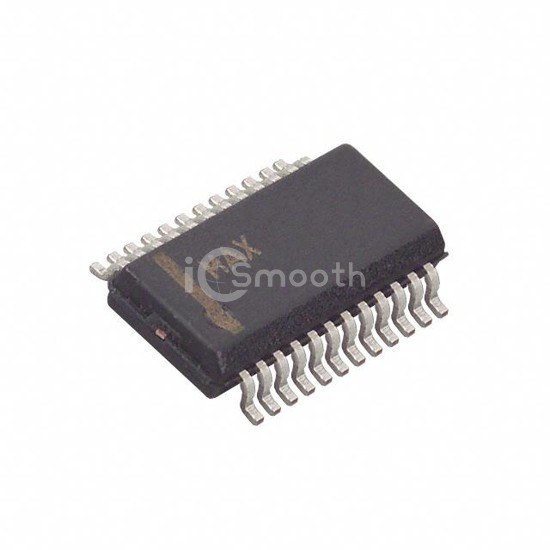

MAX1296AEEG

IC ADC 12BIT SAR 24QSOP

MAX1296AEEG is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc./Maxim Integrated. IC ADC 12BIT SAR 24QSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, package / case 24-SSOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 9,458

Specifications

18 parameters

Product Status	Obsolete
Number of Bits	12
Sampling Rate (Per Second)	420k
Number of Inputs	1, 2
Input Type	Pseudo-Differential, Single Ended
Data Interface	Parallel
Configuration	MUX-S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	SAR
Reference Type	External, Internal
Voltage - Supply, Analog	5V
Voltage - Supply, Digital	5V
Features	-
Operating Temperature	-40°C ~ 85°C
Package / Case	24-SSOP (0.154", 3.90mm Width)
Supplier Device Package	24-QSOP
Mounting Type	Surface Mount
