Name: MAX1292BCEG+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX1292BCEG+
Price: 24.15 USD
Availability: InStock

REF: MAX1292BCEG+ Analog Devices Inc./Maxim Integrated

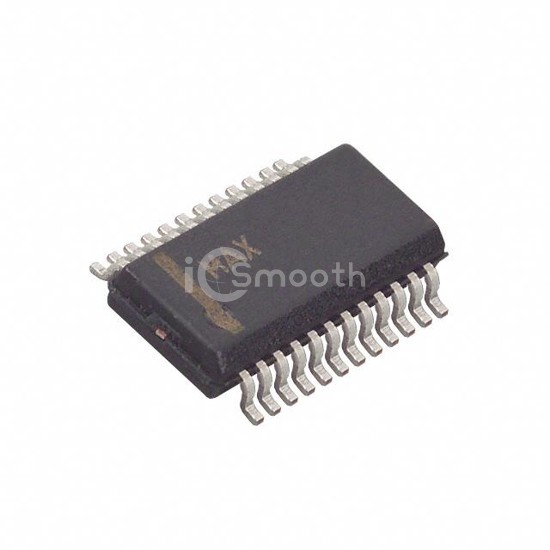

MAX1292BCEG+

Analog Devices Inc./Maxim Integrated

IC ADC 12BIT SAR 24QSOP

MAX1292BCEG+ is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc./Maxim Integrated. IC ADC 12BIT SAR 24QSOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 24-SSOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 3,368

Tiered Pricing USD

1+ $24.1500 —

10+ $19.3910 -20%

50+ $17.4852 -28%

100+ $16.8951 -30%

250+ $16.2720 -33%

500+ $15.8965 -34% BEST

Specifications

18 parameters

Product Status	Active
Number of Bits	12
Sampling Rate (Per Second)	400k
Number of Inputs	2, 4
Input Type	Pseudo-Differential, Single Ended
Data Interface	Parallel
Configuration	MUX-S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	SAR
Reference Type	External, Internal
Voltage - Supply, Analog	5V
Voltage - Supply, Digital	2.7V ~ 5.5V
Features	-
Operating Temperature	0°C ~ 70°C
Package / Case	24-SSOP (0.154", 3.90mm Width)
Supplier Device Package	24-QSOP
Mounting Type	Surface Mount
