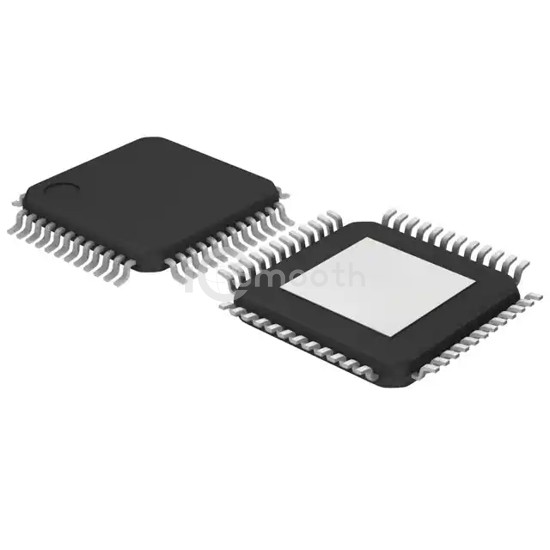

Name: MAX1184ECM+D
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX1184ECM+D
Price: 16.07 USD
Availability: InStock

REF: MAX1184ECM+D Analog Devices Inc./Maxim Integrated

MAX1184ECM+D

Analog Devices Inc./Maxim Integrated

IC ADC 10BIT PIPELINED 48TQFP

MAX1184ECM+D is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc./Maxim Integrated. IC ADC 10BIT PIPELINED 48TQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 3.6V, package / case 48-TQFP Exposed Pad.

Datasheet Request a Quote

In Stock: 7,480

Tiered Pricing USD

1+ $16.0700 —

10+ $12.7360 -21%

25+ $11.9028 -26%

100+ $10.9869 -32%

250+ $10.5503 -34%

500+ $10.2872 -36% BEST

Specifications

18 parameters

Product Status	Active
Number of Bits	10
Sampling Rate (Per Second)	20M
Number of Inputs	2
Input Type	Differential, Single Ended
Data Interface	Parallel
Configuration	S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	2

Architecture	Pipelined
Reference Type	External, Internal
Voltage - Supply, Analog	2.7V ~ 3.6V
Voltage - Supply, Digital	2.7V ~ 3.6V
Features	Simultaneous Sampling
Operating Temperature	-40°C ~ 85°C
Package / Case	48-TQFP Exposed Pad
Supplier Device Package	48-TQFP-EP (7x7)
Mounting Type	Surface Mount
