Name: ICL7109IPL+
Brand: Analog Devices Inc./Maxim Integrated
SKU: ICL7109IPL+
Price: 21.95 USD
Availability: InStock

REF: ICL7109IPL+ Analog Devices Inc./Maxim Integrated

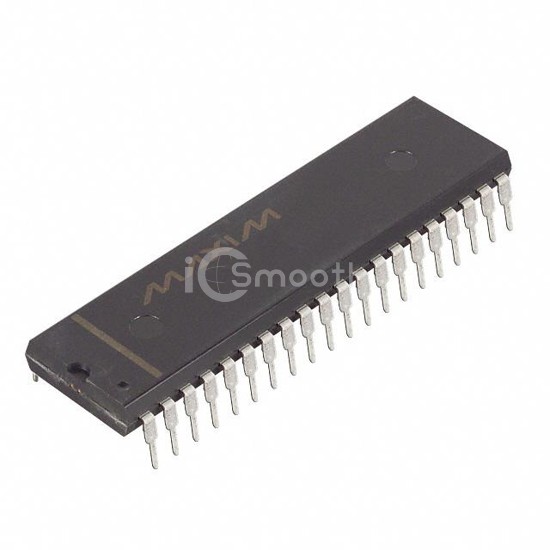

ICL7109IPL+

Analog Devices Inc./Maxim Integrated

IC ADC 12BIT DUAL SLOPE 40DIP

ICL7109IPL+ is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc./Maxim Integrated. IC ADC 12BIT DUAL SLOPE 40DIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C, voltage - supply, digital ±5V, package / case 40-DIP (0.600", 15.24mm).

Datasheet Request a Quote

In Stock: 2,395

Specifications

18 parameters

Product Status	Active
Number of Bits	12
Sampling Rate (Per Second)	30
Number of Inputs	1
Input Type	Differential
Data Interface	Parallel
Configuration	ADC
Ratio - S/H:ADC	-
Number of A/D Converters	1

Architecture	Dual Slope
Reference Type	External
Voltage - Supply, Analog	±5V
Voltage - Supply, Digital	±5V
Features	-
Operating Temperature	-20°C ~ 85°C
Package / Case	40-DIP (0.600", 15.24mm)
Supplier Device Package	40-PDIP
Mounting Type	Through Hole
