Name: ICL7109CMH+D
Brand: Analog Devices Inc./Maxim Integrated
SKU: ICL7109CMH+D
Availability: InStock

REF: ICL7109CMH+D Analog Devices Inc./Maxim Integrated

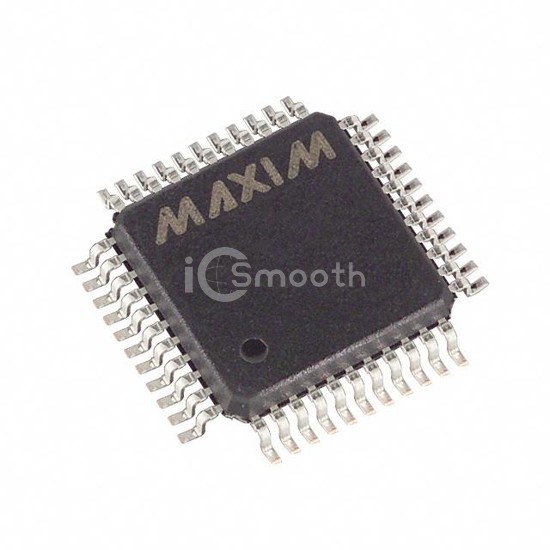

ICL7109CMH+D

IC ADC 12BIT DUAL SLOPE 44MQFP

ICL7109CMH+D is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc./Maxim Integrated. IC ADC 12BIT DUAL SLOPE 44MQFP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital ±5V, package / case 44-QFP.

Datasheet Request a Quote

In Stock: 1,971

Specifications

18 parameters

Product Status	Obsolete
Number of Bits	12
Sampling Rate (Per Second)	30
Number of Inputs	1
Input Type	Differential
Data Interface	Parallel
Configuration	ADC
Ratio - S/H:ADC	-
Number of A/D Converters	1

Architecture	Dual Slope
Reference Type	External
Voltage - Supply, Analog	±5V
Voltage - Supply, Digital	±5V
Features	-
Operating Temperature	0°C ~ 70°C
Package / Case	44-QFP
Supplier Device Package	44-MQFP (10x10)
Mounting Type	Surface Mount
