Name: DS9503P+
Brand: Analog Devices Inc./Maxim Integrated
SKU: DS9503P+
Price: 1.85 USD
Availability: InStock

REF: DS9503P+ Analog Devices Inc./Maxim Integrated

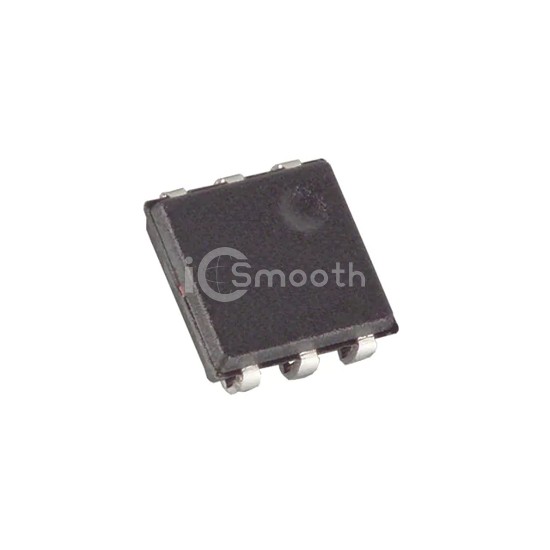

DS9503P+

Analog Devices Inc./Maxim Integrated

TVS DIODE 7.5VWM 6TSOC

DS9503P+ is a TVS - Diodes manufactured by Analog Devices Inc./Maxim Integrated. TVS DIODE 7.5VWM 6TSOC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-SMD, J-Lead.

Datasheet Request a Quote

In Stock: 3,398

Tiered Pricing USD

1+ $1.8500 —

10+ $1.4800 -20%

120+ $1.0300 -44%

600+ $0.8500 -54%

1,080+ $0.7750 -58% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	7.5V
Voltage - Breakdown (Min)	-
Voltage - Clamping (Max) @ Ipp	-
Current - Peak Pulse (10/1000µs)	-

Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	6-SMD, J-Lead
Supplier Device Package	6-TSOC
