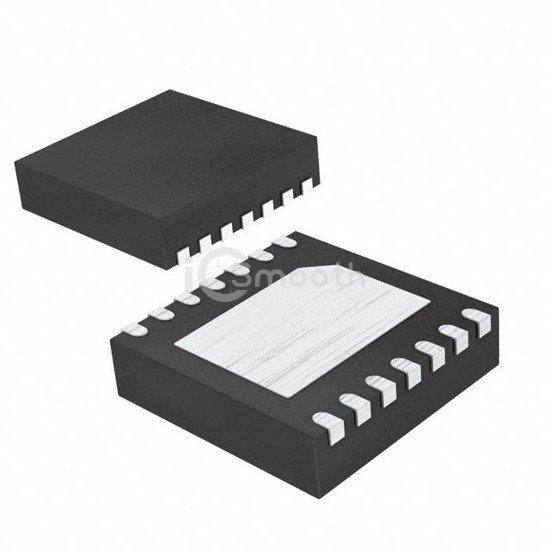

Name: DS4424N+
Brand: Analog Devices Inc./Maxim Integrated
SKU: DS4424N+
Price: 3.12 USD
Availability: InStock

REF: DS4424N+ Analog Devices Inc./Maxim Integrated

DS4424N+

Analog Devices Inc./Maxim Integrated

IC DAC 7BIT A-OUT 14TDFN

DS4424N+ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 7BIT A-OUT 14TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 14-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 8,266

Tiered Pricing USD

1+ $3.1200 —

10+ $2.3380 -25%

25+ $2.1428 -31%

100+ $1.9277 -38%

300+ $1.8078 -42%

500+ $1.7634 -43%

1,000+ $1.7126 -45%

2,500+ $1.6589 -47%

5,000+ $1.6265 -48% BEST

Specifications

16 parameters

Product Status	Active
Number of Bits	7
Number of D/A Converters	4
Settling Time	-
Output Type	Current - Unbuffered
Differential Output	No
Data Interface	I²C
Reference Type	-

Voltage - Supply, Analog	2.7V ~ 5.5V
Voltage - Supply, Digital	2.7V ~ 5.5V
INL/DNL (LSB)	±1 (Max), ±0.5 (Max)
Architecture	Current Sink, Current Source
Operating Temperature	-40°C ~ 85°C
Package / Case	14-WFDFN Exposed Pad
Supplier Device Package	14-TDFN (3x3)
Mounting Type	Surface Mount
