DS1859B-020

In Stock: 2,364

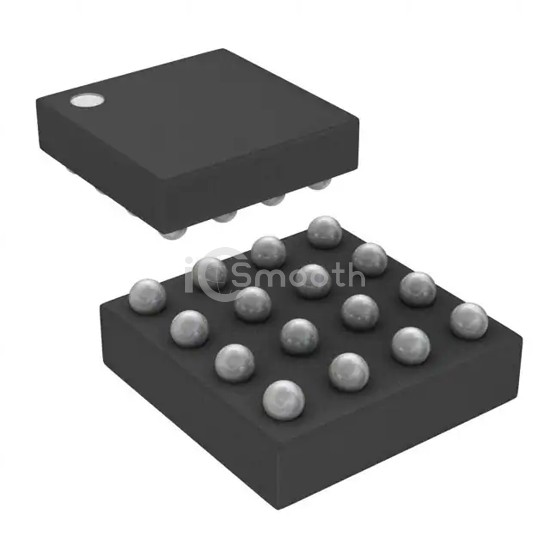

DS1859B-020 - Analog Devices Inc./Maxim Integrated - Data Acquisition - Digital Potentiometers
REF: DS1859B-020 Analog Devices Inc./Maxim Integrated
DS1859B-020

Analog Devices Inc./Maxim Integrated

IC DGT POT 20KOHM 256TAP 16CSBGA

DS1859B-020 is a Data Acquisition - Digital Potentiometers manufactured by Analog Devices Inc./Maxim Integrated. IC DGT POT 20KOHM 256TAP 16CSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 95°C, voltage - supply 2.85V ~ 5.5V, package / case 16-LBGA, CSPBGA.

Datasheet Request a Quote

In Stock: 2,364

Specifications

17 parameters
Product StatusObsolete
TaperLinear
ConfigurationRheostat
Number of Circuits2
Number of Taps256
Resistance (Ohms)20k
InterfaceI²C
Memory TypeNon-Volatile
Voltage - Supply2.85V ~ 5.5V
FeaturesSelectable Address, Temperature Sensor
Tolerance±20%
Temperature Coefficient (Typ)50ppm/°C
Mounting TypeSurface Mount
Supplier Device Package16-CSBGA (4x4)
Package / Case16-LBGA, CSPBGA
Operating Temperature-40°C ~ 95°C
Resistance - Wiper (Ohms) (Typ)-
