Name: DS1780E+T&R
Brand: Analog Devices Inc./Maxim Integrated
SKU: DS1780E+T&R
Price: 6.46 USD
Availability: InStock

REF: DS1780E+T&R Analog Devices Inc./Maxim Integrated

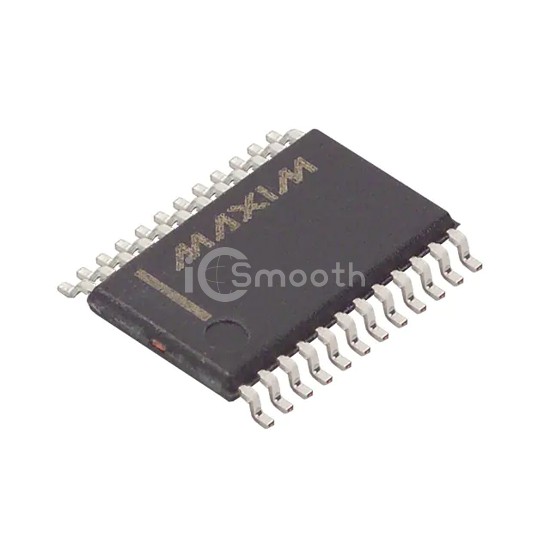

DS1780E+T&R

Analog Devices Inc./Maxim Integrated

IC CPU PERIPHERAL MON 24-TSSOP

DS1780E+T&R is a PMIC - Thermal Management manufactured by Analog Devices Inc./Maxim Integrated. IC CPU PERIPHERAL MON 24-TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.8V ~ 5.75V, package / case 24-TSSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 1,806

Tiered Pricing USD

1+ $6.4600 —

10+ $4.9640 -23%

25+ $4.5908 -29%

100+ $4.1803 -35%

250+ $3.9846 -38%

500+ $3.8667 -40% BEST

Specifications

14 parameters

Product Status	Active
Function	Thermal Monitor, CPU Peripherals
Sensor Type	Internal
Sensing Temperature	-40°C ~ 125°C
Accuracy	±12°C(Max)
Topology	ADC (Sigma Delta), Comparator, Fan Speed Control, Register Bank
Output Type	I²C/SMBus

Output Alarm	No
Output Fan	Yes
Voltage - Supply	2.8V ~ 5.75V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	24-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	24-TSSOP
