Name: DS17285-3+
Brand: Analog Devices Inc./Maxim Integrated
SKU: DS17285-3+
Availability: InStock

REF: DS17285-3+ Analog Devices Inc./Maxim Integrated

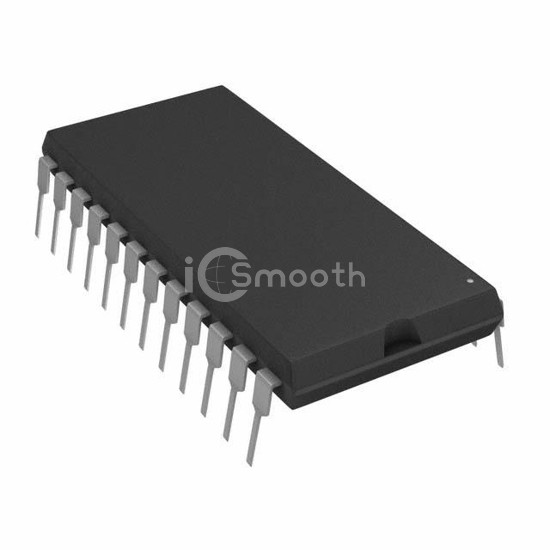

DS17285-3+

IC RTC CLK/CALENDAR PAR 24-DIP

DS17285-3+ is a Clock/Timing - Real Time Clocks manufactured by Analog Devices Inc./Maxim Integrated. IC RTC CLK/CALENDAR PAR 24-DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply 2.7V ~ 3.7V, package / case 24-DIP (0.600", 15.24mm).

Datasheet Request a Quote

In Stock: 9,108

Specifications

14 parameters

Product Status	Obsolete
Type	Clock/Calendar
Features	Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output
Memory Size	2KB
Time Format	HH:MM:SS (12/24 hr)
Date Format	YY-MM-DD-dd
Interface	Parallel

Voltage - Supply	2.7V ~ 3.7V
Voltage - Supply, Battery	2.5V ~ 3.7V
Current - Timekeeping (Max)	2mA @ 2.7V ~ 3.7V
Operating Temperature	0°C ~ 70°C
Mounting Type	Through Hole
Package / Case	24-DIP (0.600", 15.24mm)
Supplier Device Package	24-PDIP
