Name: DS1687-5+
Brand: Analog Devices Inc./Maxim Integrated
SKU: DS1687-5+
Price: 22.53 USD
Availability: InStock

REF: DS1687-5+ Analog Devices Inc./Maxim Integrated

DS1687-5+

Analog Devices Inc./Maxim Integrated

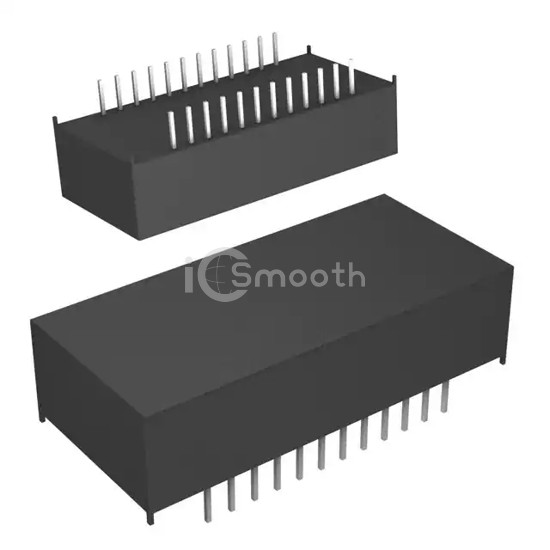

IC RTC CLK/CALENDAR PAR 24-EDIP

DS1687-5+ is a Clock/Timing - Real Time Clocks manufactured by Analog Devices Inc./Maxim Integrated. IC RTC CLK/CALENDAR PAR 24-EDIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply 4.5V ~ 5.5V, package / case 24-DIP Module (0.600", 15.24mm).

Datasheet Request a Quote

In Stock: 8,763

Tiered Pricing USD

1+ $22.5300 —

14+ $17.6007 -22%

28+ $16.8068 -25%

112+ $15.6155 -31%

252+ $15.1057 -33%

504+ $14.7531 -35% BEST

Specifications

14 parameters

Product Status	Active
Type	Clock/Calendar
Features	Alarm, NVSRAM, Square Wave Output, Y2K
Memory Size	242B
Time Format	HH:MM:SS (12/24 hr)
Date Format	YY-MM-DD-dd
Interface	Parallel

Voltage - Supply	4.5V ~ 5.5V
Voltage - Supply, Battery	2.5V ~ 3.7V
Current - Timekeeping (Max)	3mA @ 5V
Operating Temperature	0°C ~ 70°C
Mounting Type	Through Hole
Package / Case	24-DIP Module (0.600", 15.24mm)
Supplier Device Package	24-EDIP
