Name: DS1685EN-3+
Brand: Analog Devices Inc./Maxim Integrated
SKU: DS1685EN-3+
Price: 12.26 USD
Availability: InStock

REF: DS1685EN-3+ Analog Devices Inc./Maxim Integrated

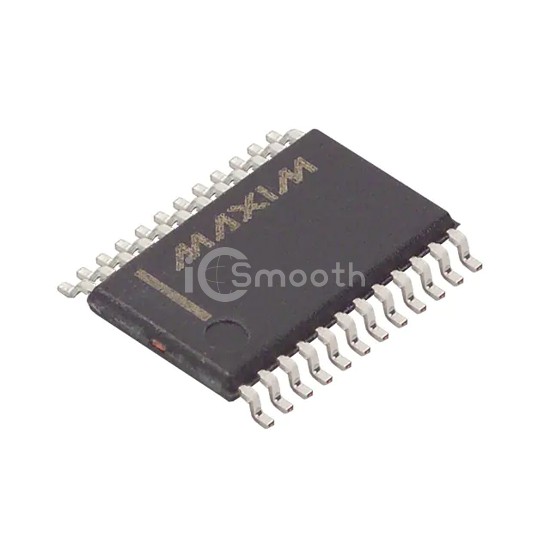

DS1685EN-3+

Analog Devices Inc./Maxim Integrated

IC RTC CLK/CALENDAR PAR 24-TSSOP

DS1685EN-3+ is a Clock/Timing - Real Time Clocks manufactured by Analog Devices Inc./Maxim Integrated. IC RTC CLK/CALENDAR PAR 24-TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2.7V ~ 3.7V, package / case 24-TSSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 9,570

Tiered Pricing USD

1+ $12.2600 —

10+ $9.6300 -21%

62+ $8.4689 -31%

124+ $8.1619 -33%

310+ $7.8376 -36%

558+ $7.6696 -37%

1,054+ $7.5164 -39% BEST

Specifications

14 parameters

Product Status	Active
Type	Clock/Calendar
Features	Alarm, NVSRAM, Square Wave Output, Y2K
Memory Size	242B
Time Format	HH:MM:SS (12/24 hr)
Date Format	YY-MM-DD-dd
Interface	Parallel

Voltage - Supply	2.7V ~ 3.7V
Voltage - Supply, Battery	2.5V ~ 3.7V
Current - Timekeeping (Max)	2mA @ 3V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	24-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	24-TSSOP
