Name: DS1685E-3+
Brand: Analog Devices Inc./Maxim Integrated
SKU: DS1685E-3+
Price: 10.41 USD
Availability: InStock

REF: DS1685E-3+ Analog Devices Inc./Maxim Integrated

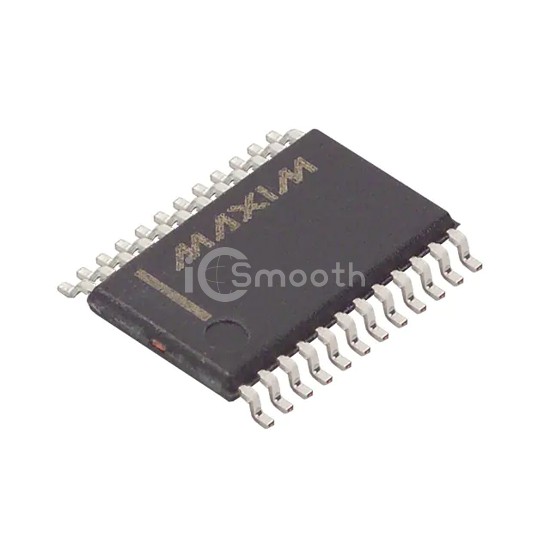

DS1685E-3+

Analog Devices Inc./Maxim Integrated

IC RTC CLK/CALENDAR PAR 24-TSSOP

DS1685E-3+ is a Clock/Timing - Real Time Clocks manufactured by Analog Devices Inc./Maxim Integrated. IC RTC CLK/CALENDAR PAR 24-TSSOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply 2.7V ~ 3.7V, package / case 24-TSSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 2,969

Tiered Pricing USD

1+ $10.4100 —

10+ $8.1320 -22%

62+ $7.1263 -32%

124+ $6.8605 -34%

310+ $6.5797 -37%

558+ $6.4341 -38%

1,054+ $6.3015 -39% BEST

Specifications

14 parameters

Product Status	Active
Type	Clock/Calendar
Features	Alarm, NVSRAM, Square Wave Output, Y2K
Memory Size	242B
Time Format	HH:MM:SS (12/24 hr)
Date Format	YY-MM-DD-dd
Interface	Parallel

Voltage - Supply	2.7V ~ 3.7V
Voltage - Supply, Battery	2.5V ~ 3.7V
Current - Timekeeping (Max)	2mA @ 3V
Operating Temperature	0°C ~ 70°C
Mounting Type	Surface Mount
Package / Case	24-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	24-TSSOP
