Name: DS1501WE+
Brand: Analog Devices Inc./Maxim Integrated
SKU: DS1501WE+
Availability: InStock

REF: DS1501WE+ Analog Devices Inc./Maxim Integrated

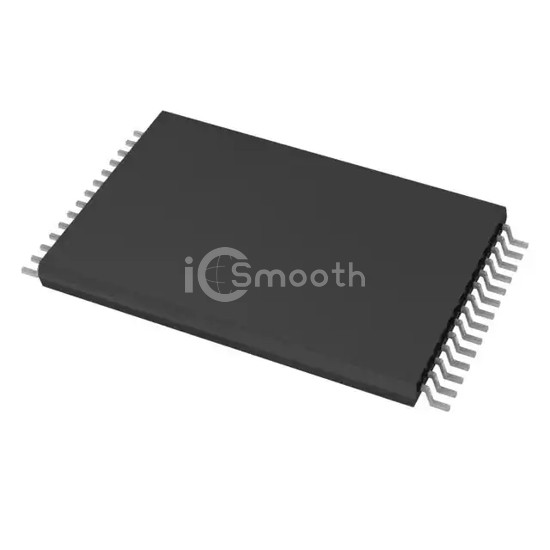

DS1501WE+

IC RTC CLK/CALENDAR PAR 28-TSOP

DS1501WE+ is a Clock/Timing - Real Time Clocks manufactured by Analog Devices Inc./Maxim Integrated. IC RTC CLK/CALENDAR PAR 28-TSOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply 3V ~ 3.6V, package / case 28-TSSOP (0.465", 11.80mm Width).

Datasheet Request a Quote

In Stock: 5,822

Specifications

14 parameters

Product Status	Obsolete
Type	Clock/Calendar
Features	Alarm, Leap Year, NVSRAM, Square Wave Output, Watchdog Timer, Y2K
Memory Size	256B
Time Format	HH:MM:SS (24 hr)
Date Format	YY-MM-DD-dd
Interface	Parallel

Voltage - Supply	3V ~ 3.6V
Voltage - Supply, Battery	2.5V ~ 3.7V
Current - Timekeeping (Max)	4mA @ 3V ~ 3.6V
Operating Temperature	0°C ~ 70°C
Mounting Type	Surface Mount
Package / Case	28-TSSOP (0.465", 11.80mm Width)
Supplier Device Package	28-TSOP
