DG509AEWE-C30144 - Analog Devices Inc./Maxim Integrated - Interface - Analog Switches, Multiplexers, Demultiplexers
REF: DG509AEWE-C30144 Analog Devices Inc./Maxim Integrated
DG509AEWE-C30144

Analog Devices Inc./Maxim Integrated

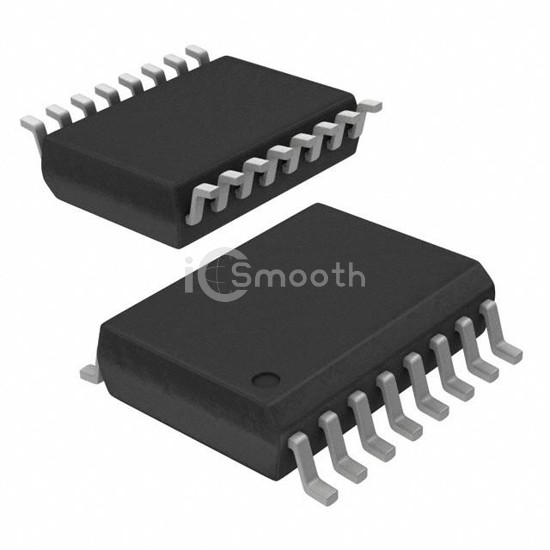

IC MUX MONO CMOS ANALOG SOIC

DG509AEWE-C30144 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC MUX MONO CMOS ANALOG SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-SOIC (0.295", 7.50mm Width), number of circuits 2.

Request a Quote

In Stock: 7,191

Specifications

18 parameters
Product StatusObsolete
Switch CircuitSP4T
Multiplexer/Demultiplexer Circuit4:1
Number of Circuits2
On-State Resistance (Max)450Ohm
Channel-to-Channel Matching (ΔRon)27Ohm
Voltage - Supply, Single (V+)-
Voltage - Supply, Dual (V±)±4.5V ~ 18V
Switch Time (Ton, Toff) (Max)1.5µs, 1µs
-3db Bandwidth-
Charge Injection-
Channel Capacitance (CS(off), CD(off))5pF, 12pF
Current - Leakage (IS(off)) (Max)1nA
Crosstalk-
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case16-SOIC (0.295", 7.50mm Width)
Supplier Device Package16-SOIC
