DG509ABK

In Stock: 9,273
DG509ABK - Analog Devices Inc./Maxim Integrated - Interface - Analog Switches, Multiplexers, Demultiplexers
REF: DG509ABK Analog Devices Inc./Maxim Integrated
DG509ABK

Analog Devices Inc./Maxim Integrated

IC MUX CMOS ANLG DUAL-4CH 16-DIP

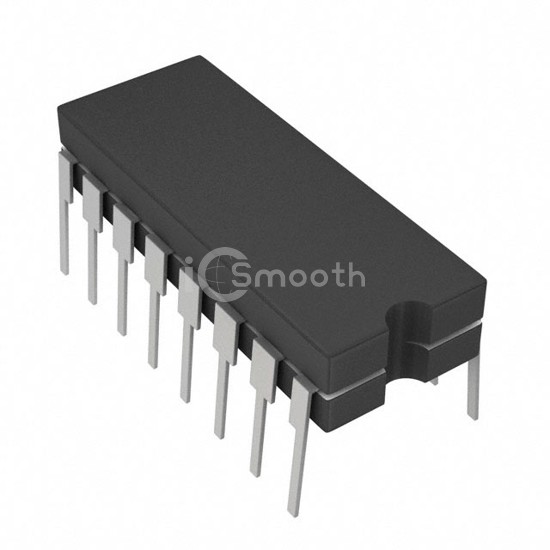

DG509ABK is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC MUX CMOS ANLG DUAL-4CH 16-DIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C (TA), package / case 16-CDIP (0.300", 7.62mm), number of circuits 2.

Datasheet Request a Quote

In Stock: 9,273

Specifications

18 parameters
Product StatusObsolete
Switch CircuitSP4T
Multiplexer/Demultiplexer Circuit4:1
Number of Circuits2
On-State Resistance (Max)450Ohm
Channel-to-Channel Matching (ΔRon)27Ohm
Voltage - Supply, Single (V+)-
Voltage - Supply, Dual (V±)±4.5V ~ 18V
Switch Time (Ton, Toff) (Max)1.5µs, 1µs
-3db Bandwidth-
Charge Injection-
Channel Capacitance (CS(off), CD(off))5pF, 12pF
Current - Leakage (IS(off)) (Max)1nA
Crosstalk-
Operating Temperature-20°C ~ 85°C (TA)
Mounting TypeThrough Hole
Package / Case16-CDIP (0.300", 7.62mm)
Supplier Device Package16-CDIP
