DG509AAK/883B

In Stock: 2,905
DG509AAK/883B - Analog Devices Inc./Maxim Integrated - Interface - Analog Switches, Multiplexers, Demultiplexers
REF: DG509AAK/883B Analog Devices Inc./Maxim Integrated
DG509AAK/883B

Analog Devices Inc./Maxim Integrated

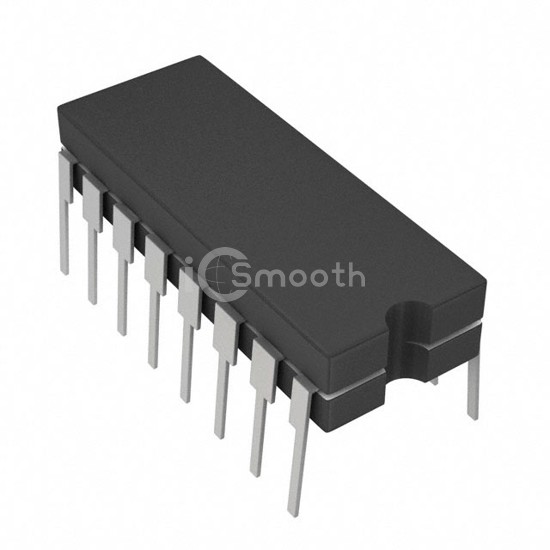

IC MUX 8:2 400 OHM 16DIP

DG509AAK/883B is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC MUX 8:2 400 OHM 16DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case 16-CDIP (0.300", 7.62mm), number of circuits 2.

Datasheet Request a Quote

In Stock: 2,905

Specifications

18 parameters
Product StatusActive
Switch CircuitSP4T
Multiplexer/Demultiplexer Circuit4:1
Number of Circuits2
On-State Resistance (Max)400Ohm
Channel-to-Channel Matching (ΔRon)24Ohm
Voltage - Supply, Single (V+)-
Voltage - Supply, Dual (V±)±4.5V ~ 18V
Switch Time (Ton, Toff) (Max)1µs, 700ns
-3db Bandwidth-
Charge Injection-
Channel Capacitance (CS(off), CD(off))5pF, 12pF
Current - Leakage (IS(off)) (Max)500pA
Crosstalk-
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeThrough Hole
Package / Case16-CDIP (0.300", 7.62mm)
Supplier Device Package16-CDIP
