DG506ACJ+

In Stock: 246

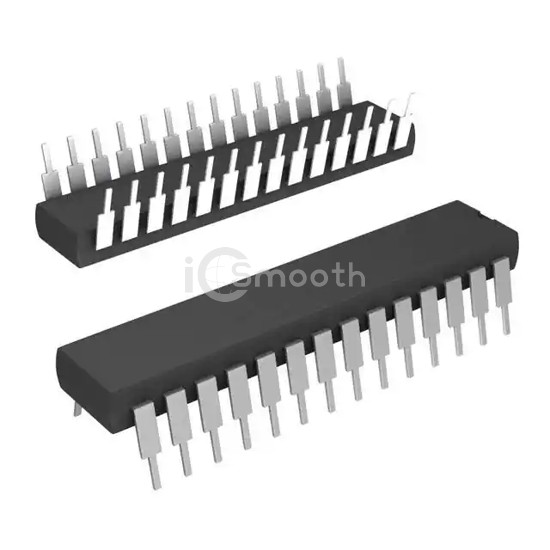

DG506ACJ+ - Analog Devices Inc./Maxim Integrated - Interface - Analog Switches, Multiplexers, Demultiplexers
REF: DG506ACJ+ Analog Devices Inc./Maxim Integrated
DG506ACJ+

Analog Devices Inc./Maxim Integrated

IC MULTIPLEXER 16X1 28DIP

DG506ACJ+ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC MULTIPLEXER 16X1 28DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C (TA), package / case 28-DIP (0.600", 15.24mm), number of circuits 1.

Datasheet Request a Quote

In Stock: 246

Tiered Pricing USD
1+ $28.4600 —
14+ $22.4193 -21%
28+ $21.4461 -25%
112+ $19.9858 -30%
252+ $19.3610 -32%
504+ $18.9290 -33% BEST

Specifications

18 parameters
Product StatusActive
Switch Circuit-
Multiplexer/Demultiplexer Circuit16:1
Number of Circuits1
On-State Resistance (Max)450Ohm
Channel-to-Channel Matching (ΔRon)-
Voltage - Supply, Single (V+)-
Voltage - Supply, Dual (V±)±4.5V ~ 18V
Switch Time (Ton, Toff) (Max)1µs, 400ns
-3db Bandwidth-
Charge Injection-
Channel Capacitance (CS(off), CD(off))6pF, 45pF
Current - Leakage (IS(off)) (Max)5nA
Crosstalk-
Operating Temperature0°C ~ 70°C (TA)
Mounting TypeThrough Hole
Package / Case28-DIP (0.600", 15.24mm)
Supplier Device Package28-PDIP
