Name: DG301ABA
Brand: Analog Devices Inc./Maxim Integrated
SKU: DG301ABA
Availability: InStock

REF: DG301ABA Analog Devices Inc./Maxim Integrated

DG301ABA

CMOS ANALOG SWITCH

DG301ABA is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. CMOS ANALOG SWITCH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case TO-100-10 Metal Can, number of circuits 1.

Datasheet Request a Quote

In Stock: 5,247

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	50Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	-
Voltage - Supply, Dual (V±)	±15V
Switch Time (Ton, Toff) (Max)	300ns, 250ns

-3db Bandwidth	-
Charge Injection	8pC
Channel Capacitance (CS(off), CD(off))	14pF, 14pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-74dB @ 500kHz
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Through Hole

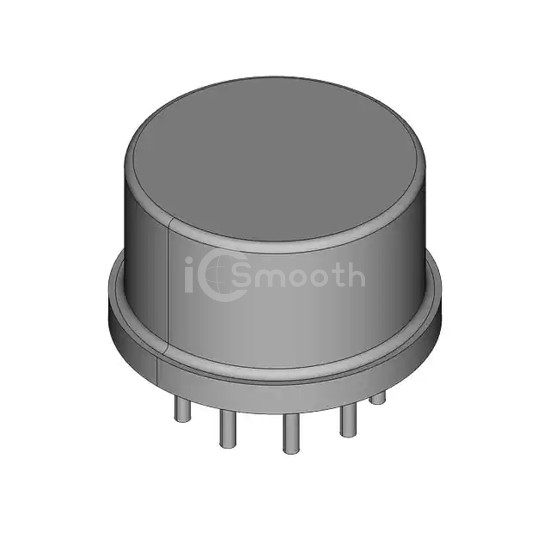

Package / Case	TO-100-10 Metal Can
Supplier Device Package	TO-100-10
