7705302EA - Analog Devices Inc./Maxim Integrated - Interface - Analog Switches, Multiplexers, Demultiplexers
REF: 7705302EA Analog Devices Inc./Maxim Integrated
7705302EA

Analog Devices Inc./Maxim Integrated

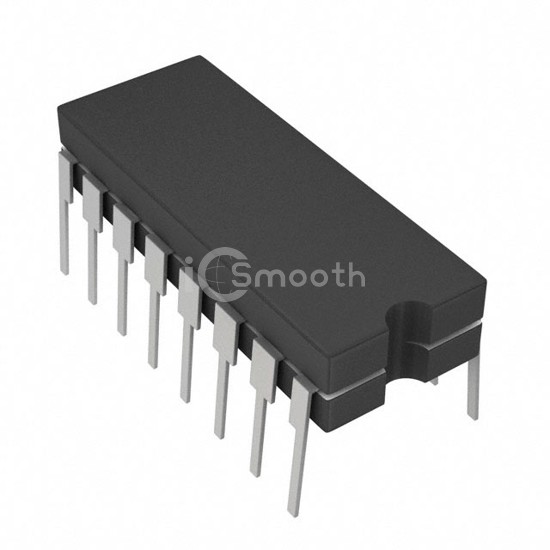

IC SWITCH SPST QUAD 16CDIP

7705302EA is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH SPST QUAD 16CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case 16-CDIP (0.300", 7.62mm), number of circuits 4.

Request a Quote

In Stock: 7,109

Specifications

18 parameters
Product StatusActive
Switch CircuitSPST - NC
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits4
On-State Resistance (Max)50Ohm
Channel-to-Channel Matching (ΔRon)-
Voltage - Supply, Single (V+)12V ~ 20V
Voltage - Supply, Dual (V±)±5V ~ 20V
Switch Time (Ton, Toff) (Max)50ns, 50ns
-3db Bandwidth-
Charge Injection10pC
Channel Capacitance (CS(off), CD(off))10pF, 10pF
Current - Leakage (IS(off)) (Max)1nA
Crosstalk-90dB @ 100kHz
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeThrough Hole
Package / Case16-CDIP (0.300", 7.62mm)
Supplier Device Package16-CDIP
