7705301EA

In Stock: 2,258
7705301EA - Analog Devices Inc./Maxim Integrated - Interface - Analog Switches, Multiplexers, Demultiplexers
REF: 7705301EA Analog Devices Inc./Maxim Integrated
7705301EA

Analog Devices Inc./Maxim Integrated

IC SWITCH SPST QUAD 16CDIP

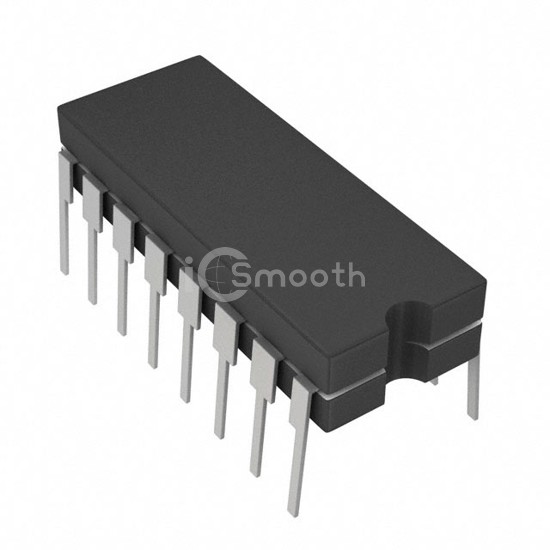

7705301EA is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH SPST QUAD 16CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case 16-CDIP (0.300", 7.62mm), number of circuits 4.

Request a Quote

In Stock: 2,258

Specifications

18 parameters
Product StatusActive
Switch CircuitSPST - NC
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits4
On-State Resistance (Max)175Ohm
Channel-to-Channel Matching (ΔRon)-
Voltage - Supply, Single (V+)-
Voltage - Supply, Dual (V±)±4.5V ~ 18V
Switch Time (Ton, Toff) (Max)600ns, 450ns
-3db Bandwidth-
Charge Injection20pC
Channel Capacitance (CS(off), CD(off))5pF, 5pF
Current - Leakage (IS(off)) (Max)1nA
Crosstalk-90dB @ 100kHz
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeThrough Hole
Package / Case16-CDIP (0.300", 7.62mm)
Supplier Device Package16-CDIP
