Name: AS1375-BTDT-18
Brand: ams
SKU: AS1375-BTDT-18
Availability: InStock

REF: AS1375-BTDT-18 ams

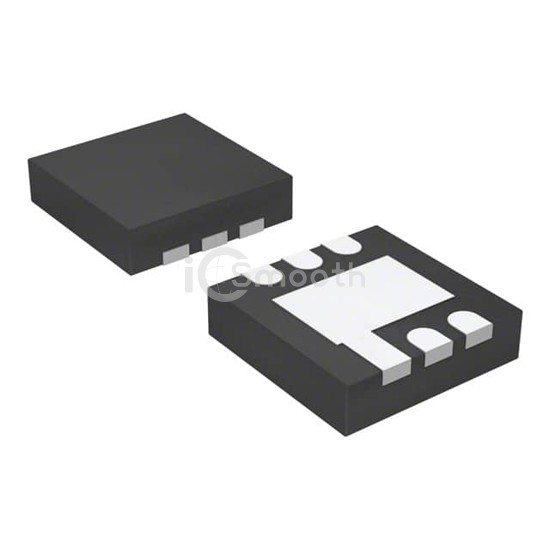

AS1375-BTDT-18

IC REG LINEAR 1.8V 200MA 6TDFN

AS1375-BTDT-18 is a PMIC - Voltage Regulators - Linear manufactured by ams. IC REG LINEAR 1.8V 200MA 6TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 6-UFDFN Exposed Pad, current - output 200mA.

Datasheet Request a Quote

In Stock: 3,489

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.8V
Voltage - Output (Max)	-
Voltage Dropout (Max)	-
Current - Output	200mA

Current - Quiescent (Iq)	2 µA
Current - Supply (Max)	-
PSRR	85dB ~ 50dB (1kHz ~ 100kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	6-UFDFN Exposed Pad
Supplier Device Package	6-TDFN (2x2)
