Name: AS1375
Brand: ams
SKU: AS1375
Availability: InStock

REF: AS1375 ams

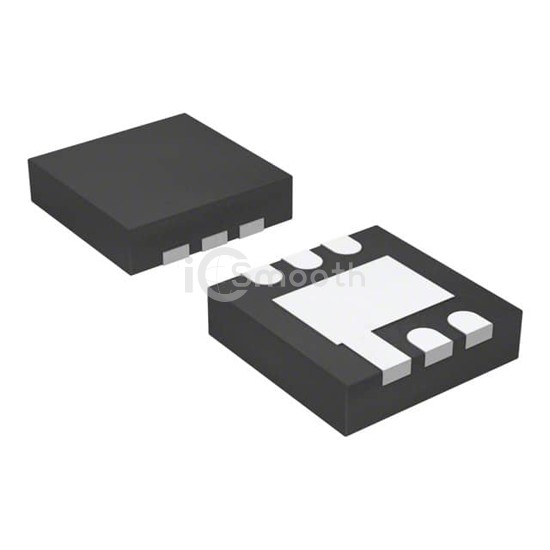

AS1375

IC REG LINEAR POS ADJ 200MA

AS1375 is a PMIC - Voltage Regulators - Linear manufactured by ams. IC REG LINEAR POS ADJ 200MA. Key specifications: operating temperature -40°C ~ 85°C, current - supply (max) 1.7 µA, output type Adjustable.

Datasheet Request a Quote

In Stock: 3,632

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.2V
Voltage - Output (Max)	5V
Voltage Dropout (Max)	0.35V @ 200mA
Current - Output	200mA

Current - Quiescent (Iq)	2 µA
Current - Supply (Max)	1.7 µA
PSRR	85dB ~ 50dB (1kHz ~ 100kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 85°C
Mounting Type	-
Package / Case	-
Supplier Device Package	-
