Name: AS1364-BTDT-AD
Brand: ams
SKU: AS1364-BTDT-AD
Availability: InStock

REF: AS1364-BTDT-AD ams

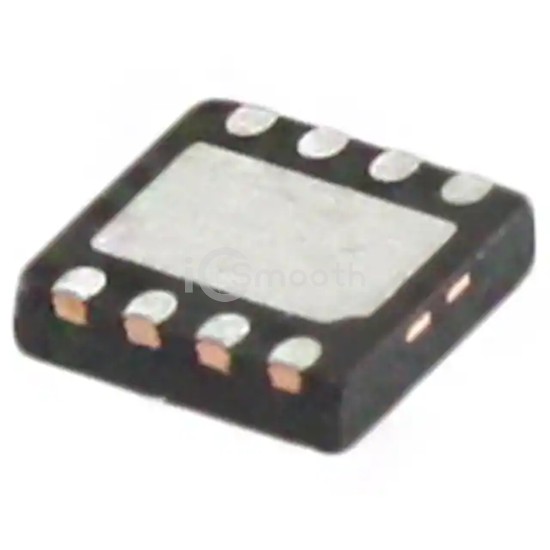

AS1364-BTDT-AD

IC REG LINEAR POS ADJ 1A 8TDFN

AS1364-BTDT-AD is a PMIC - Voltage Regulators - Linear manufactured by ams. IC REG LINEAR POS ADJ 1A 8TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-WDFN Exposed Pad, current - supply (max) 200 µA.

Datasheet Request a Quote

In Stock: 8,108

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.2V
Voltage - Output (Max)	5.3V
Voltage Dropout (Max)	0.32V @ 1A
Current - Output	1A

Current - Quiescent (Iq)	150 µA
Current - Supply (Max)	200 µA
PSRR	72dB ~ 46dB (1kHz ~ 100kHz)
Control Features	Enable, Power Good
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	8-WDFN Exposed Pad
Supplier Device Package	8-TDFN (3x3)
