Name: AS1364-BTDT-45
Brand: ams
SKU: AS1364-BTDT-45
Availability: InStock

REF: AS1364-BTDT-45 ams

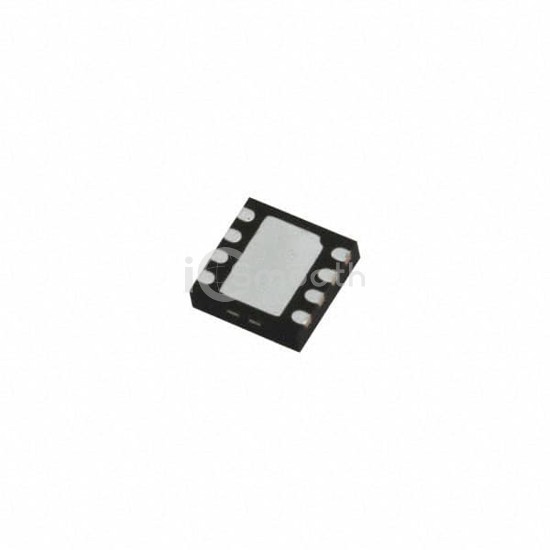

AS1364-BTDT-45

IC REG LINEAR 4.5V 1A 8TDFN

AS1364-BTDT-45 is a PMIC - Voltage Regulators - Linear manufactured by ams. IC REG LINEAR 4.5V 1A 8TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-WDFN Exposed Pad, current - supply (max) 200 µA.

Datasheet Request a Quote

In Stock: 7,721

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	4.5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	-
Current - Output	1A

Current - Quiescent (Iq)	150 µA
Current - Supply (Max)	200 µA
PSRR	78dB ~ 46dB (1kHz ~ 100kHz)
Control Features	Enable, Power Good
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-WDFN Exposed Pad
Supplier Device Package	8-TDFN (3x3)
