Name: AS1345D-BWLT-15
Brand: ams
SKU: AS1345D-BWLT-15
Availability: InStock

REF: AS1345D-BWLT-15 ams

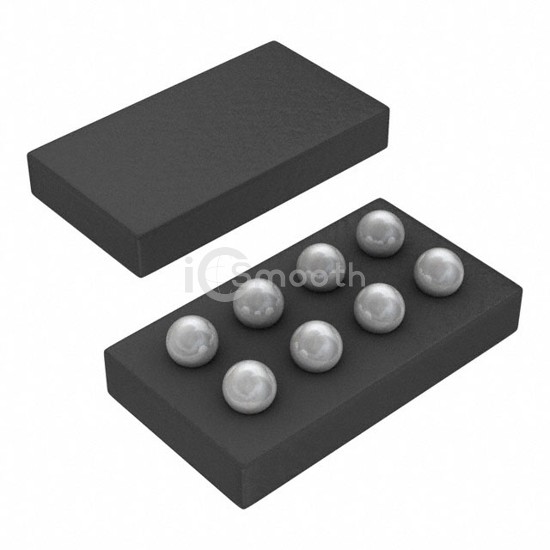

AS1345D-BWLT-15

IC REG BOOST 15V 1A 8WLCSP

AS1345D-BWLT-15 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by ams. IC REG BOOST 15V 1A 8WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-UFBGA, WLCSP, current - output 1A (Switch).

Datasheet Request a Quote

In Stock: 9,629

Specifications

17 parameters

Product Status	Obsolete
Function	Step-Up
Output Configuration	Positive
Topology	Boost
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	2.9V
Voltage - Input (Max)	5V
Voltage - Output (Min/Fixed)	15V

Voltage - Output (Max)	-
Current - Output	1A (Switch)
Frequency - Switching	-
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-UFBGA, WLCSP
Supplier Device Package	8-WLCSP (1.62x0.84)
