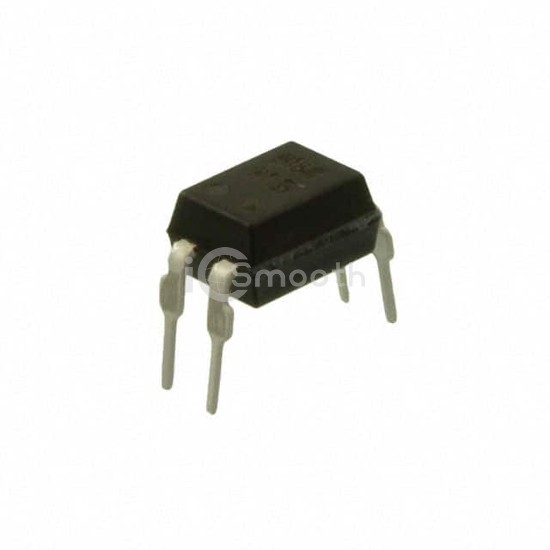

Name: BPC-817 ( B BIN )
Brand: American Bright Optoelectronics Corporation
SKU: BPC-817 ( B BIN )
Price: 0.43 USD
Availability: InStock

REF: BPC-817 ( B BIN ) American Bright Optoelectronics Corporation

BPC-817 ( B BIN )

American Bright Optoelectronics Corporation

SENSOR PHOTO 4DIP

BPC-817 ( B BIN ) is a Optoisolators - Transistor, Photovoltaic Output manufactured by American Bright Optoelectronics Corporation. SENSOR PHOTO 4DIP. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 110°C, voltage - forward (vf) (typ) 1.2V, package / case 4-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 3,507

Tiered Pricing USD

1+ $0.4300 —

10+ $0.2950 -31%

100+ $0.2105 -51%

500+ $0.1723 -60%

1,000+ $0.1597 -63%

2,000+ $0.1490 -65%

5,000+ $0.1373 -68%

10,000+ $0.1300 -70%

25,000+ $0.1220 -72% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	130% @ 5mA
Current Transfer Ratio (Max)	260% @ 5mA
Turn On / Turn Off Time (Typ)	4µs, 4µs
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	35V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	200mV
Operating Temperature	-30°C ~ 110°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.300", 7.62mm)
Supplier Device Package	4-DIP
