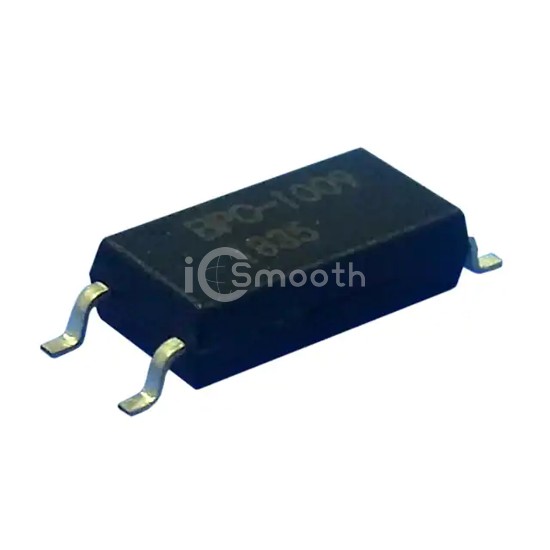

Name: BPC-1009
Brand: American Bright Optoelectronics Corporation
SKU: BPC-1009
Price: 0.38 USD
Availability: InStock

REF: BPC-1009 American Bright Optoelectronics Corporation

BPC-1009

American Bright Optoelectronics Corporation

4 PINS TRANSISTOR OUTPUT OPTOCOU

BPC-1009 is a Optoisolators - Transistor, Photovoltaic Output manufactured by American Bright Optoelectronics Corporation. 4 PINS TRANSISTOR OUTPUT OPTOCOU. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 110°C, voltage - forward (vf) (typ) 1.25V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 8,065

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	18µs, 18µs (Max)
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.25V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	300mV
Operating Temperature	-30°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	-
