Name: APC-817D1-SL
Brand: American Bright Optoelectronics Corporation
SKU: APC-817D1-SL
Price: 0.37 USD
Availability: InStock

REF: APC-817D1-SL American Bright Optoelectronics Corporation

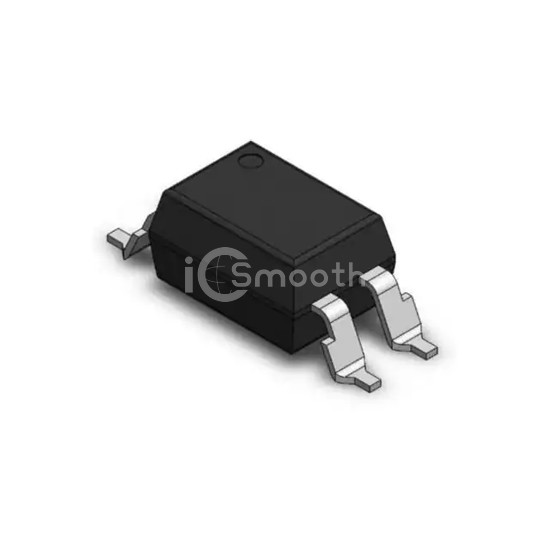

APC-817D1-SL

American Bright Optoelectronics Corporation

DIP4, DC INPUT, PHOTO TRANSISTOR

APC-817D1-SL is a Optoisolators - Transistor, Photovoltaic Output manufactured by American Bright Optoelectronics Corporation. DIP4, DC INPUT, PHOTO TRANSISTOR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.24V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 1,470

Tiered Pricing USD

1+ $0.3700 —

10+ $0.2510 -32%

100+ $0.1783 -52%

500+ $0.1452 -61% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	300% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	3µs, 4µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	35V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.24V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	200mV
Operating Temperature	-55°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
