Name: AOZ8851DI-05
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOZ8851DI-05
Price: 0.07 USD
Availability: InStock

REF: AOZ8851DI-05 Alpha & Omega Semiconductor Inc.

AOZ8851DI-05

Alpha & Omega Semiconductor Inc.

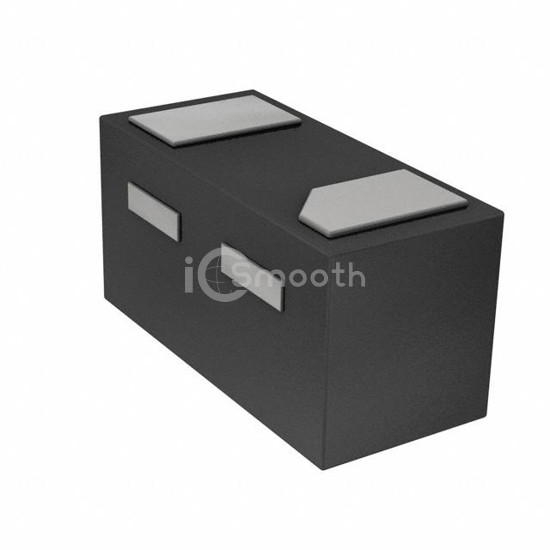

TVS DIODE 5VWM 19.5VC 2DFN

AOZ8851DI-05 is a TVS - Diodes manufactured by Alpha & Omega Semiconductor Inc.. TVS DIODE 5VWM 19.5VC 2DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TJ), package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 1,579

Tiered Pricing USD

6,000+ $0.0712 —

12,000+ $0.0655 -8%

18,000+ $0.0626 -12%

30,000+ $0.0593 -17%

42,000+ $0.0573 -19%

60,000+ $0.0563 -21% BEST

Specifications

16 parameters

Product Status	Obsolete
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	19.5V
Current - Peak Pulse (10/1000µs)	2A (8/20µs)

Power - Peak Pulse	40W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	0.3pF @ 1MHz
Operating Temperature	-40°C ~ 85°C (TJ)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	2-DFN (0.6x0.3)
