Name: AOZ8809DI-05
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOZ8809DI-05
Price: 0.56 USD
Availability: InStock

REF: AOZ8809DI-05 Alpha & Omega Semiconductor Inc.

AOZ8809DI-05

Alpha & Omega Semiconductor Inc.

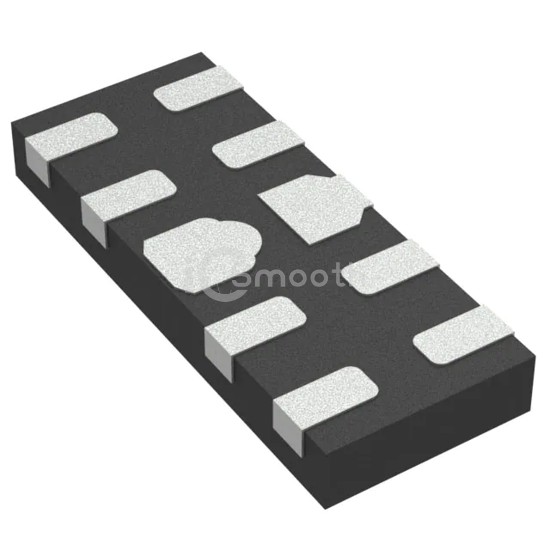

TVS DIODE 5VWM 9VC 10DFN

AOZ8809DI-05 is a TVS - Diodes manufactured by Alpha & Omega Semiconductor Inc.. TVS DIODE 5VWM 9VC 10DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 10-UFDFN.

Datasheet Request a Quote

In Stock: 552,750

Tiered Pricing USD

1+ $0.5600 —

10+ $0.3440 -39%

100+ $0.2193 -61%

500+ $0.1652 -70%

1,000+ $0.1478 -74% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	4
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	9V
Current - Peak Pulse (10/1000µs)	12A (100ns)

Power - Peak Pulse	-
Power Line Protection	Yes
Applications	HDMI
Capacitance @ Frequency	0.45pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-UFDFN
Supplier Device Package	10-DFN (2.5x1)
