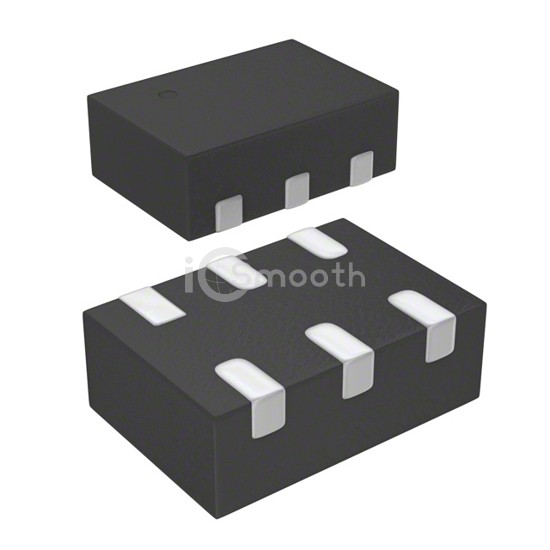

Name: AOZ8234DI-05
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOZ8234DI-05
Price: 0.10 USD
Availability: InStock

REF: AOZ8234DI-05 Alpha & Omega Semiconductor Inc.

AOZ8234DI-05

Alpha & Omega Semiconductor Inc.

TVS DIODE 5VWM 15VC 6DFN

AOZ8234DI-05 is a TVS - Diodes manufactured by Alpha & Omega Semiconductor Inc.. TVS DIODE 5VWM 15VC 6DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 6-UFDFN.

Datasheet Request a Quote

In Stock: 3,557

Tiered Pricing USD

6,000+ $0.1005 —

9,000+ $0.0960 -5%

15,000+ $0.0908 -10%

21,000+ $0.0878 -13%

30,000+ $0.0850 -15% BEST

Specifications

16 parameters

Product Status	Obsolete
Type	Zener
Unidirectional Channels	4
Bidirectional Channels	2
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	15V
Current - Peak Pulse (10/1000µs)	25A

Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	13.5pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-UFDFN
Supplier Device Package	6-DFN (1.45x1.0)
