Name: AOZ8204DI
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOZ8204DI
Price: 0.08 USD
Availability: InStock

REF: AOZ8204DI Alpha & Omega Semiconductor Inc.

AOZ8204DI

Alpha & Omega Semiconductor Inc.

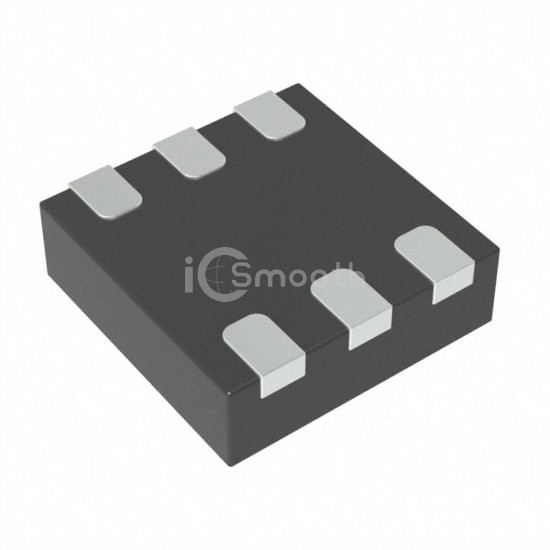

TVS DIODE 5VWM 7.5VC 6DFN

AOZ8204DI is a TVS - Diodes manufactured by Alpha & Omega Semiconductor Inc.. TVS DIODE 5VWM 7.5VC 6DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 6-UFDFN.

Datasheet Request a Quote

In Stock: 5,835

Tiered Pricing USD

6,000+ $0.0777 —

9,000+ $0.0740 -5%

15,000+ $0.0698 -10%

21,000+ $0.0673 -13%

30,000+ $0.0649 -16%

75,000+ $0.0625 -20% BEST

Specifications

16 parameters

Product Status	Obsolete
Type	Zener
Unidirectional Channels	4
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	7.5V
Current - Peak Pulse (10/1000µs)	5A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	15pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-UFDFN
Supplier Device Package	6-DFN (1.6x1.6)
